Background

With recent advances in endovascular cerebral and peripheral aneurysm repair, the accuracy of measuring aneurysm volume has become increasingly important. Calculating the percent packing volume after coil embolization can be used as an indicator of long term success and depends on an accurate calculation of aneurysm volume.1-2 Tamatani et al1 have shown a relationship between the percent packing volume and recanalization of aneurysms. They found that the incidence of recanalization was significantly lower in aneurysms packed greater than 25%. Sluzewski et al2 have shown a relationship between compaction of the coil mesh and percent packing volume. They reported no compaction at 6 months in aneurysms that were packed greater than 24%.

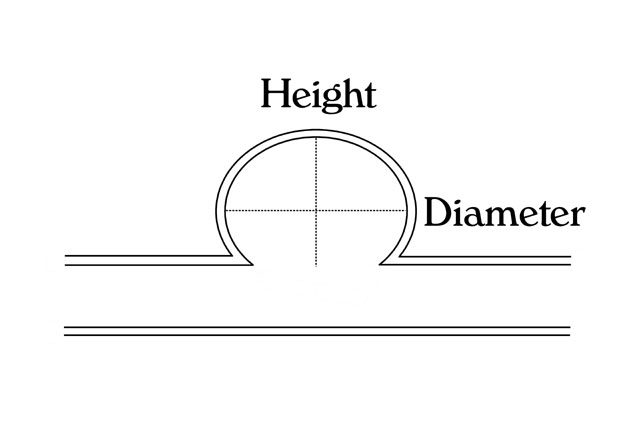

To calculate the percent packing volume, first calculate the volume of the aneurysm (Figure 1). The volume of the aneurysm can be obtained by using 3D volumetric software or manually by choosing a shape on the Home Page and entering the measured dimensions.

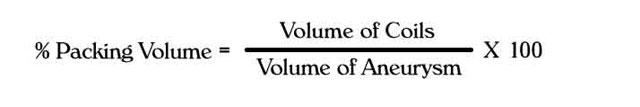

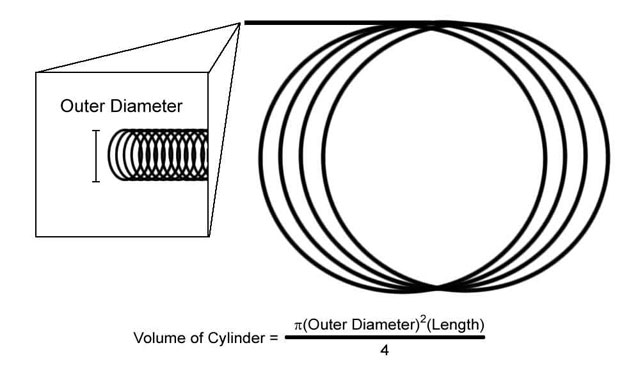

On the % Packing Page enter the total length of the coils deployed. Coil volume is determined using the formula for a cylinder. While most coils have a circular primary wind, there are slight variations which the Outer Diameters (OD) provided by the manufacturers reflects. The provided Outer Diameters (Figure 2) are listed on the % Packing Page. Finally, the percent packing volume is calculated by dividing the volume of the coils delivered by the volume of the aneurysm (Figure 3).

Figure 1 - Aneurysm Volume Figure 2 - Coil Volume Figure 3 - % Packing Volume
(click thumbs to enlarge)
